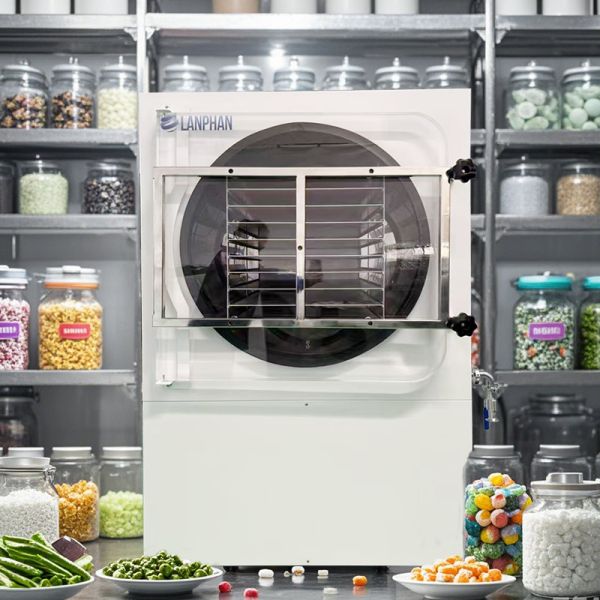

5m2 18 Trays Vacuum Lyophilizer Freeze Dryer Small Commercial Freeze Drying Equipment

  • 1
  • 2
  • 3

Brand Name : Lanphan

Model Number : HFD-50

Certification : contact us

Place of Origin : Henan, China

MOQ : 1 unit

Price : $17999/unit

Payment Terms : L/C, T/T, Paypal, Alipay...

Supply Ability : 25 units per month

Delivery Time : 7-45 working days

Packaging Details : wooden box packing

Type : Commercial Freeze Drying Equipment

Total power : 7500W

Voltage : 220v(can be customized 110V or 380V)

Cold trap temperature : -70℃

Capacity : 60~70kg/batch

Material tray size : 490mm*540mm*30mm

Warranty : 12 months

Weight : 820KG

Application : fruit, vegetable,candy,herb,liquid...

Contact Now

5m2 18 Trays Vacuum Lyophilizer Freeze Dryer Small Commercial Freeze Drying Equipment

Commercial Freeze Drying Equipment Parameter

5m2 18 Trays Vacuum Lyophilizer Freeze Dryer Small Commercial Freeze Drying Equipment

1. The 9-layer freeze dryer with 18 trays offers ample freeze-drying space. Temperature sensors are installed on each floor to ensure that the temperature of each layer and tray can be maintained within a specified temperature range.
2. The water trap and drying chamber are separated. This not only prevents cross-contamination by preventing back-contamination of materials in the drying chamber from moisture in the water trap or contaminants, but also protects product purity and quality, increasing drying efficiency. It features independent temperature control and an adjustable vacuum system to meet specific needs.

Model HFD-50
Tray space 5m2
Processing capacity 60-70 kg/batch
Number of layers 9
Layer Spacing 50mm
Number of trays 18pcs
Material tray size 490*540*30mm
Power supply 220V/50HZ can be customized 110V or 380V
Overall power 7500W
Cold trap temperature -65ºC
Machine size 1650*1400*2000mm
Weight 820kg

Commercial Freeze Drying Equipment Application

5m2 18 Trays Vacuum Lyophilizer Freeze Dryer Small Commercial Freeze Drying Equipment5m2 18 Trays Vacuum Lyophilizer Freeze Dryer Small Commercial Freeze Drying Equipment

Commercial Freeze Drying Equipment Advantages

1. Compact, modern appearance.
2. Transparent acrylic glass door for easy observation of the freeze-drying process.
3. Panel and liner made of SUS304 stainless steel, safe and stable.
4. Acrylic door with flexible hinges to ensure a level of vacuum.
5. Imported key components are low-noise, high-capacity, high-quality, and high-efficiency.
6. Touch screen operation allows one-button start and automatic control of the freeze-drying process, easy and convenient.
7. The freeze-drying process can be set and modified in real time. Freeze-drying data and freeze-drying curves can be displayed.
8. Advanced system, low operating current, and low energy consumption.
9. Rapid one-button defrosting technology with automatic overheating protection.
10. Low-noise commercial vacuum pump. (Oil-free vacuum pump is optional.)

5m2 18 Trays Vacuum Lyophilizer Freeze Dryer Small Commercial Freeze Drying Equipment5m2 18 Trays Vacuum Lyophilizer Freeze Dryer Small Commercial Freeze Drying Equipment5m2 18 Trays Vacuum Lyophilizer Freeze Dryer Small Commercial Freeze Drying Equipment

Commercial Freeze Drying Equipment Details

5m2 18 Trays Vacuum Lyophilizer Freeze Dryer Small Commercial Freeze Drying Equipment

Commercial Freeze Drying Equipment Factory

5m2 18 Trays Vacuum Lyophilizer Freeze Dryer Small Commercial Freeze Drying Equipment
